Product Details:
|
| High Hashrate: | 255T / 184T/ 158T | Cooling Method: | Hydro-cooling Miner |
|---|---|---|---|
| Safety Certification: | North America/Standards：NFPA 79:2021，UL 508A:2018 R8.21， CSA C22.2 No. 14-18，ANSI/ISO 12100:2012 EU/Standards：EN ISO 12100，EN 60204-1 | Operating Power(kW): | 1047~1050 |

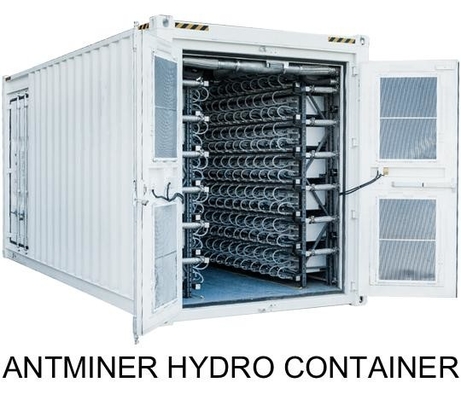

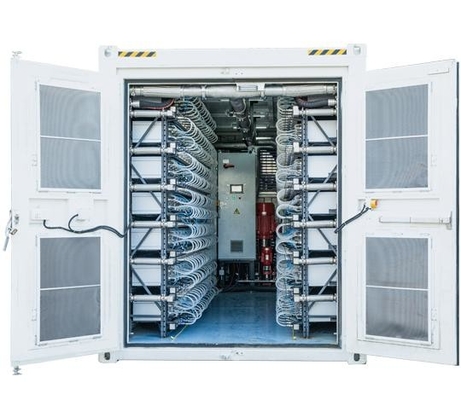

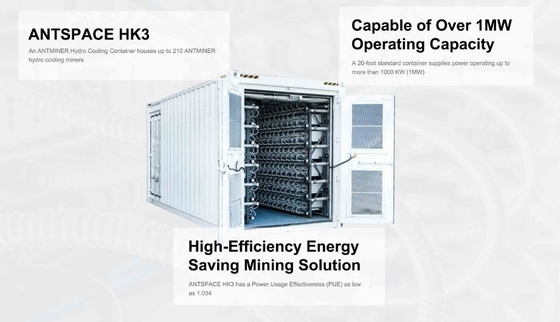

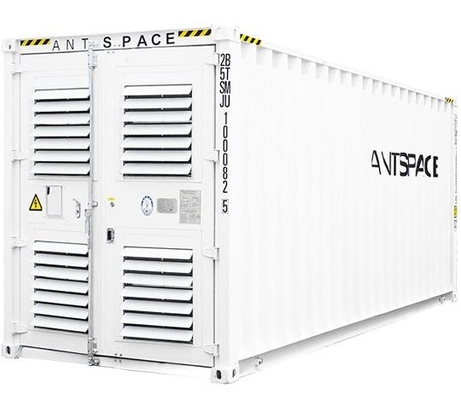

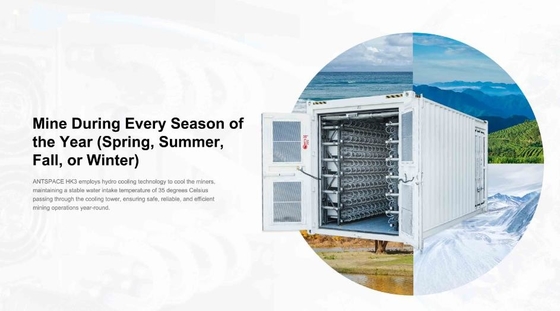

ANTSPACE HK3 can put 210 units S19 Hyd. Series miner from bimain ANTSPACE HK3
NOTES
1. The ANTSPACE HK3 is recommended to be used simultaneously with The ANTMINER S19 Pro+ Hyd. Please click here for more details on S19 Pro+ Hyd.
2. The pictures shown are for reference only; the final shipment version shall prevail.
Specification:
| Product Overview | |
| Model | ANTSPACE HK3 |
| Dimensions (L*W*H) (mm) | 6058*2438*2896 |
| Miner Capacity | 210 units -S19 Hyd. Series miner |
| Container Certification | China Classification Society Certification |
| Safety Certification | North America/Standards:NFPA 79:2021,UL 508A:2018 R8.21, |
| CSA C22.2 No. 14-18,ANSI/ISO 12100:2012 | |
| EU/Standards:EN ISO 12100,EN 60204-1 | |
| Operating Power(kW) | 1047~1050 |
| PUE(Power Usage Effectiveness) | 1.022(Excluding cooling tower)/1.036(Including cooling tower) |
| Input Voltage and Frequency | 415V±5% 60Hz(North America) |
| 400V±5% 50Hz(EU,Middle East) | |
| Detailed Characteristics | |
| Shipping Weight(T) | 8 |
| Operating Weight (T) | 12 |
| Main Switch of Power Distribution Cabinets(A) | 1200(North America) |
| 1250(EU,Middle East) | |
| Rated Current(A) | 952 |
| Standard Power(kW) | 1049 |
| Maximum Power(kW) | 1050 |
| Rated Current per Miner(A) | 10 |
| Inlet Cable | The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase: |
| L1 single core cable 600kcMil(300mm²)x4 | |
| L2 single core cable 600kcMil(300mm²)x4 | |
| L3 single core cable 600kcMil(300mm²)x4 | |
| N Single-core cable 600kcMil(300mm²)x4 | |
| PE single-core cable 500kcMil(240mm²)x2 | |
| Connection Interface(Cooling Tower) | DN125(GB/T 9119-2010 PN16 DN125) |
| Connection Interface(Plate Heat Exchage Interface) | DN100(GB/T 9119-2010 PN16 DN100) |
| Flow Rate(m³/h) | ＞85 |
| Quantity of ANTSPACE powered by one 2500kVA Transformer | 2 |
| Product Overview | ||

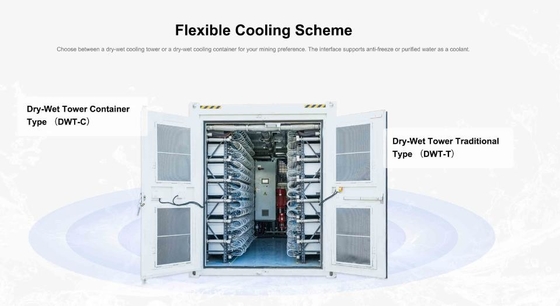

| Type | Dry-Wet Tower Traditional Type (DWT-T) | Dry-Wet Tower Container Type (DWT-C) |
| Dimensions(L*W*H)(mm) | 5800*2240*4200 | 6058*2438*2896 |
| Heat Dissipation Capacity(kW) | 1000 | 1000 |
| Outlet Temperature @ 28℃ Wet Bulb Temperature | 35℃ | 35℃ |
| Container Certification | None | China Classification Society Certification |
| Safety Certification | North America/Standards: NFPA 79:2021, UL 508A:2018 R8.21, | North America/Standards: NFPA 79:2021, UL 508A:2018 R8.21, |
| CSA C22.2 No. 14-18, ANSI/ISO 12100:2012 | CSA C22.2 No. 14-18, ANSI/ISO 12100:2012 | |
| EU Standards: EN ISO 12100, EN 60204-1 | EU Standards: EN ISO 12100, EN 60204-1 | |
| Operating Power(kW) | 14~28 | 14~28 |
| Motor Rated Voltage and Frequency | 415V±5% 60Hz(North America) | 415V±5% 60Hz(North America) |
| 400V±5% 50Hz(EU,Middle East) | 400V±5% 50Hz(EU,Middle East) | |
| Detailed Characteristics | ||
| Shipping Weight(T) | 5 | 7 |
| Operating Weight(T) | 9 | 12 |
| Connection Interface(Container) | DN125(GB/T 9119-2010 PN16 DN125) | DN125(GB/T 9119-2010 PN16 DN125) |
| Water Resupply Pipe Interface | DN40(Internal thread) | DN40(Internal thread) |
| Drain Pipe Interface | DN65(Internal thread) | DN65(Internal thread) |
| Noise Level @25℃, 16m | 70dBA | 70dBA |
| Water Consumption(m³/h) | 1~1.5 | 1~1.5 |
Shenzhen Letine Techonology Co., Ltd , Established in 1998.
16 years alibaba gold supplier, factory was verified by SGS & BV. we produce gpu mining rig and supply
original bitmain antminer/whatsminer/avalon/innosilicon/Jasminer/goldshell/Yami/ Ipollo miner since 2015.
below hot sale asic miner and mining rig model for your reference:
GPU Mining Rig: (support mining all coin except bitcoin !!!)
M06S 6GPU Mining Rig (Without graphic card) include: 6gpu mining motherboard inbuild
Intel 2980CPU (70mm pcie distance)+ mining case + 4*fans +3000W Psu+ DDR3 Ram 4GB +128GB SSD
M08S 8 GPU Mining Rig (Without graphic card) include: 8gpu mining motherboard inbuild Intel
2980CPU(65mm pcie distance)+ mining case + 5*fans +3000W Psu+ DDR3 Ram 4GB +128GB
M05S Fullset 5GPU Mining Rig (Professional for Used for IDC Platform):
5gpu mining motherboard (70MM PCIE Distance)+ mining case+3*fans +2300w psu+ DDR3 Ram 4GB +128GB SSD
FAQ:
Q1: How can I get your latest product and price list?
A1: Please provide your contact information (Such as Email, Whatsapp, Skype, Wechat) to us.
We will contact you and send our quotation to you as soon as possible.
Q2: How about the Warranty?
A2: Some model is 180 days warranty. Some miner is 360 days warranty
Q3: Who could provide the Warranty Service?
A3: If it is within the warranty period, the original factory of the miners will be responsible for it. If it is out of warranty, we will provide paid maintenance service.
Q4: How about the payment?
A4: We mainly support USDT, USDC, T/T bank transfer, MoneyGram, Western Union, Cash and So on.
Q5: What is your shipping methods?
A5: We use UPS, DHL, FedEx, EMS, TNT, Aramex or the shipping agent as your request, but we will give you best suggestion of which shipping method
Contact Person: Nora Ji
Tel: 86-18123784965
