Product Details:
|
| High Hashrate: | 255T / 184T/ 158T | Cooling Method: | Hydro-cooling Miner |
|---|---|---|---|
| Safety Certification: | North America/Standards：NFPA 79:2021，UL 508A:2018 R8.21， CSA C22.2 No. 14-18，ANSI/ISO 12100:2012 EU/Standards：EN ISO 12100，EN 60204-1 | Operating Power(kW): | 1047~1050 |
| High Light: | S19pro Hydro Antminer Cooling Kit,S21 Antminer Cooling Kit,Bitmain Whatsminer immersion cooling container |
||

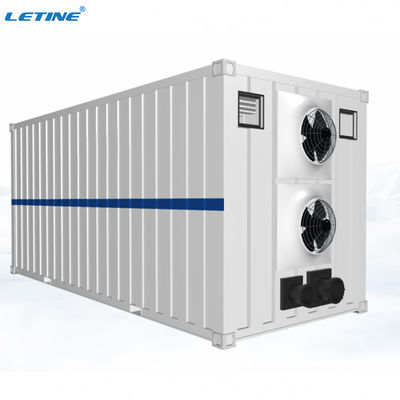

Immersion Cooling System Vendors S19 S21HYDRO S19pro hydro Water Cooling Kit 1.6MW Cooler Container
235KW Bitmain Asic Antminer 255T 158T Water Cooled Miner Cooling System
Best Profit 235KW Immersion Cooling Container Water-cooled Miner Cooling System for 252pcs 336pcs Antminer Whatsminer
Input Voltage: 380V/50Hz
Total Power Consumption: 200KW
PUE: 1.0526
Power Consumption: 4600W - 6300W
Water Temperature (In/Out): 35°/46°
Container Power Consumption: 5KW - 10KW
Size: 2043*2610*755
Weight: 300Kg/1000Kg
Quantity: 30 - 45
Interface(cold tower): DN125
Interface(Heating): DN125
Interface(Heating & Pressure Bearing Capacity) :10Kg
Environmental Temperature: -25~40ºC
dB(A) Decibel : 65
Internal Coolant :antifreeze / water
Specification:
| Product Overview | |
| Model | ANTSPACE HK3 |
| Dimensions (L*W*H) (mm) | 6058*2438*2896 |
| Miner Capacity | 210 units -S19 Hyd. Series miner |
| Container Certification | China Classification Society Certification |
| Safety Certification | North America/Standards:NFPA 79:2021,UL 508A:2018 R8.21, |
| CSA C22.2 No. 14-18,ANSI/ISO 12100:2012 | |
| EU/Standards:EN ISO 12100,EN 60204-1 | |
| Operating Power(kW) | 1047~1050 |
| PUE(Power Usage Effectiveness) | 1.022(Excluding cooling tower)/1.036(Including cooling tower) |
| Input Voltage and Frequency | 415V±5% 60Hz(North America) |
| 400V±5% 50Hz(EU,Middle East) | |
| Detailed Characteristics | |
| Shipping Weight(T) | 8 |
| Operating Weight (T) | 12 |
| Main Switch of Power Distribution Cabinets(A) | 1200(North America) |
| 1250(EU,Middle East) | |
| Rated Current(A) | 952 |
| Standard Power(kW) | 1049 |
| Maximum Power(kW) | 1050 |
| Rated Current per Miner(A) | 10 |
| Inlet Cable | The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase: |
| L1 single core cable 600kcMil(300mm²)x4 | |
| L2 single core cable 600kcMil(300mm²)x4 | |
| L3 single core cable 600kcMil(300mm²)x4 | |
| N Single-core cable 600kcMil(300mm²)x4 | |
| PE single-core cable 500kcMil(240mm²)x2 | |
| Connection Interface(Cooling Tower) | DN125(GB/T 9119-2010 PN16 DN125) |
| Connection Interface(Plate Heat Exchage Interface) | DN100(GB/T 9119-2010 PN16 DN100) |
| Flow Rate(m³/h) | ＞85 |
| Quantity of ANTSPACE powered by one 2500kVA Transformer | 2 |
| Product Overview | ||
| Type | Dry-Wet Tower Traditional Type (DWT-T) | Dry-Wet Tower Container Type (DWT-C) |
| Dimensions(L*W*H)(mm) | 5800*2240*4200 | 6058*2438*2896 |
| Heat Dissipation Capacity(kW) | 1000 | 1000 |
| Outlet Temperature @ 28℃ Wet Bulb Temperature | 35℃ | 35℃ |
| Container Certification | None | China Classification Society Certification |
| Safety Certification | North America/Standards: NFPA 79:2021, UL 508A:2018 R8.21, | North America/Standards: NFPA 79:2021, UL 508A:2018 R8.21, |
| CSA C22.2 No. 14-18, ANSI/ISO 12100:2012 | CSA C22.2 No. 14-18, ANSI/ISO 12100:2012 | |
| EU Standards: EN ISO 12100, EN 60204-1 | EU Standards: EN ISO 12100, EN 60204-1 | |
| Operating Power(kW) | 14~28 | 14~28 |
| Motor Rated Voltage and Frequency | 415V±5% 60Hz(North America) | 415V±5% 60Hz(North America) |
| 400V±5% 50Hz(EU,Middle East) | 400V±5% 50Hz(EU,Middle East) | |
| Detailed Characteristics | ||
| Shipping Weight(T) | 5 | 7 |
| Operating Weight(T) | 9 | 12 |
| Connection Interface(Container) | DN125(GB/T 9119-2010 PN16 DN125) | DN125(GB/T 9119-2010 PN16 DN125) |
| Water Resupply Pipe Interface | DN40(Internal thread) | DN40(Internal thread) |
| Drain Pipe Interface | DN65(Internal thread) | DN65(Internal thread) |
| Noise Level @25℃, 16m | 70dBA | 70dBA |
| Water Consumption(m³/h) | 1~1.5 | 1~1.5 |
Shenzhen Letine Techonology Co., Ltd , Established in 1998.
16 years alibaba gold supplier, factory was verified by SGS & BV. we produce gpu mining rig and supply
original bitmain antminer/whatsminer/avalon/innosilicon/Jasminer/goldshell/Yami/ Ipollo miner since 2015.
below hot sale asic miner and mining rig model for your reference:
GPU Mining Rig: (support mining all coin except bitcoin !!!)
M06S 6GPU Mining Rig (Without graphic card) include: 6gpu mining motherboard inbuild
Intel 2980CPU (70mm pcie distance)+ mining case + 4*fans +3000W Psu+ DDR3 Ram 4GB +128GB SSD
M08S 8 GPU Mining Rig (Without graphic card) include: 8gpu mining motherboard inbuild Intel
2980CPU(65mm pcie distance)+ mining case + 5*fans +3000W Psu+ DDR3 Ram 4GB +128GB
M05S Fullset 5GPU Mining Rig (Professional for Used for IDC Platform):
5gpu mining motherboard (70MM PCIE Distance)+ mining case+3*fans +2300w psu+ DDR3 Ram 4GB +128GB SSD
FAQ:
Q1: How can I get your latest product and price list?
A1: Please provide your contact information (Such as Email, Whatsapp, Skype, Wechat) to us.
We will contact you and send our quotation to you as soon as possible.
Q2: How about the Warranty?
A2: Some model is 180 days warranty. Some miner is 360 days warranty
Q3: Who could provide the Warranty Service?
A3: If it is within the warranty period, the original factory of the miners will be responsible for it. If it is out of warranty, we will provide paid maintenance service.
Q4: How about the payment?
A4: We mainly support USDT, USDC, T/T bank transfer, MoneyGram, Western Union, Cash and So on.
Q5: What is your shipping methods?
A5: We use UPS, DHL, FedEx, EMS, TNT, Aramex or the shipping agent as your request, but we will give you best suggestion of which shipping method
